Features

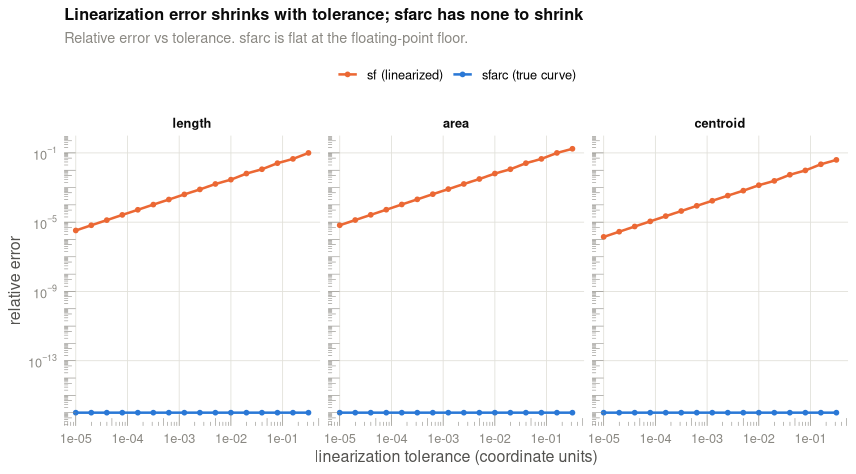

01 sfarc — Exact Geometry on Curves

The problem every sf quietly ignores: real-world features have arcs, and everyone else fakes them.

Roads, parcels, cul-de-sacs, pipelines and survey plats are full of true circular arcs — CIRCULARSTRING, COMPOUNDCURVE, CURVEPOLYGON. Ask R sf/GEOS for the length or area of one and it silently linearizes the curve into hundreds of tiny straight segments first — introducing error — or refuses the geometry outright.

ouRGeo ships with sfarc, an R package built for this project that computes on curves analytically. It derives the circle centre, radius and swept angle straight from the arc's control points and returns a closed-form, exact answer — no densification, no approximation.

What sfarc computes exactly

• Analytic, not approximate — overlay operations trace boundaries through closed-form circle–circle and circle–line intersections and return true curved geometry, not a polyline imitation.
• Cross-validated against GEOS — results are checked against the industry-standard engine, with linearization used only as a warned last resort.
• Correct on the globe — geometries in geographic coordinates are measured on the sphere or ellipsoid by adaptive quadrature of the exact curve, not by chopping it into chords.
• Zero disruption — non-curved geometries are delegated straight to sf, so nothing changes except where curves are actually present.

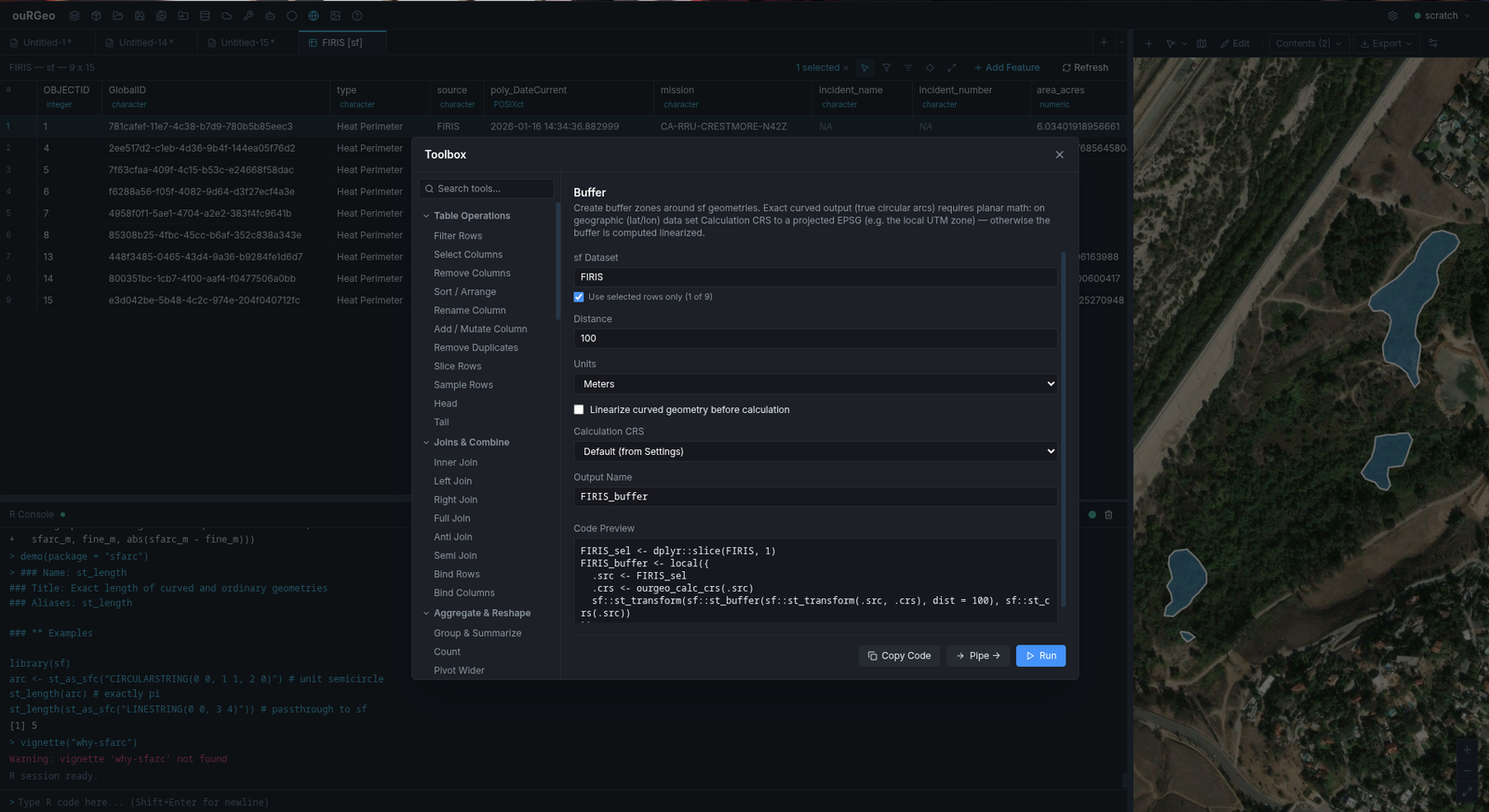

02 The Geoprocessing Toolbox

85+ point-and-click tools across seven categories — and every one writes clean R.

Fill in a form, pick your layers and columns, hit run. The toolbox handles the geoprocessing you reach for every day — and instead of hiding the work, it generates the exact R code in your console so the result is always reproducible.

03 Industry-Standard Drawing & Editing

Digitizing that feels like professional CAD — snapping, precision entry, and full geometry editing.

Drawing in ouRGeo isn't a toy sketch tool. It's a real digitizing environment built for accuracy, with the conventions surveyors and CAD users expect.

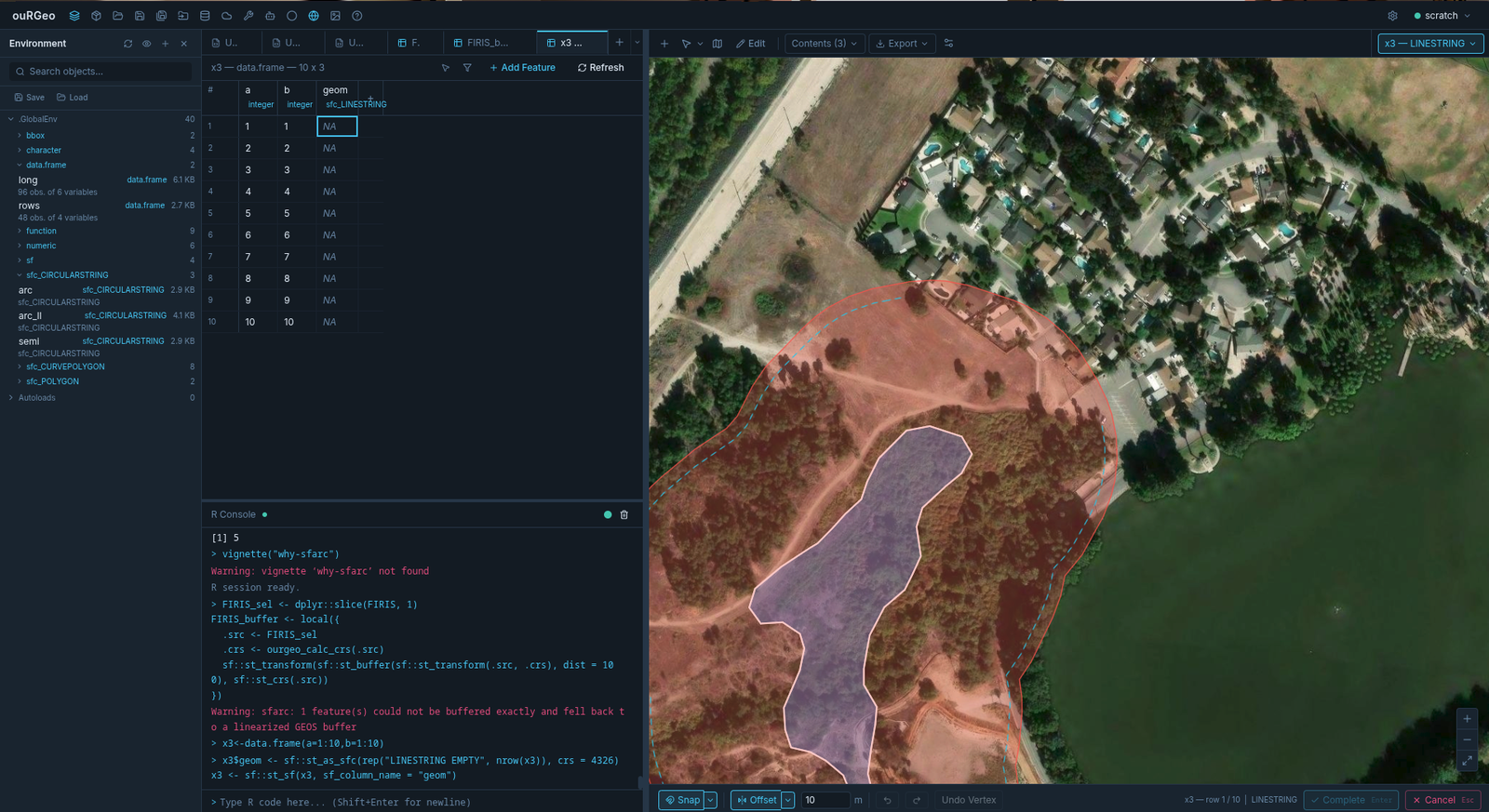

Smart snapping engine

As you draw, ouRGeo snaps to vertices, edges, midpoints and true intersections across every visible layer — plus the shape you're currently drawing. It's backed by a spatial index (R-tree), so snapping stays instant even over dense data, with a sensible priority order (vertex > intersection > midpoint > edge).

AutoCAD-style precise input

Don't eyeball it — type it. Enter an absolute coordinate, or place the next vertex relative to the last one by distance and bearing. Distances are geodesic (measured on the globe), so precision holds anywhere on Earth.

# Absolute coordinate
-122.42, 37.77

# Relative: 150 m at 45° clockwise from north
d150 a45

• Full geometry editing — move, add and delete vertices on existing features through the geometry-edit ribbon.
• Curve points — lay down true curved segments, not just straight lines.
• Undo-friendly — remove the last vertex, cancel a curve point, or finish the feature with a keystroke.

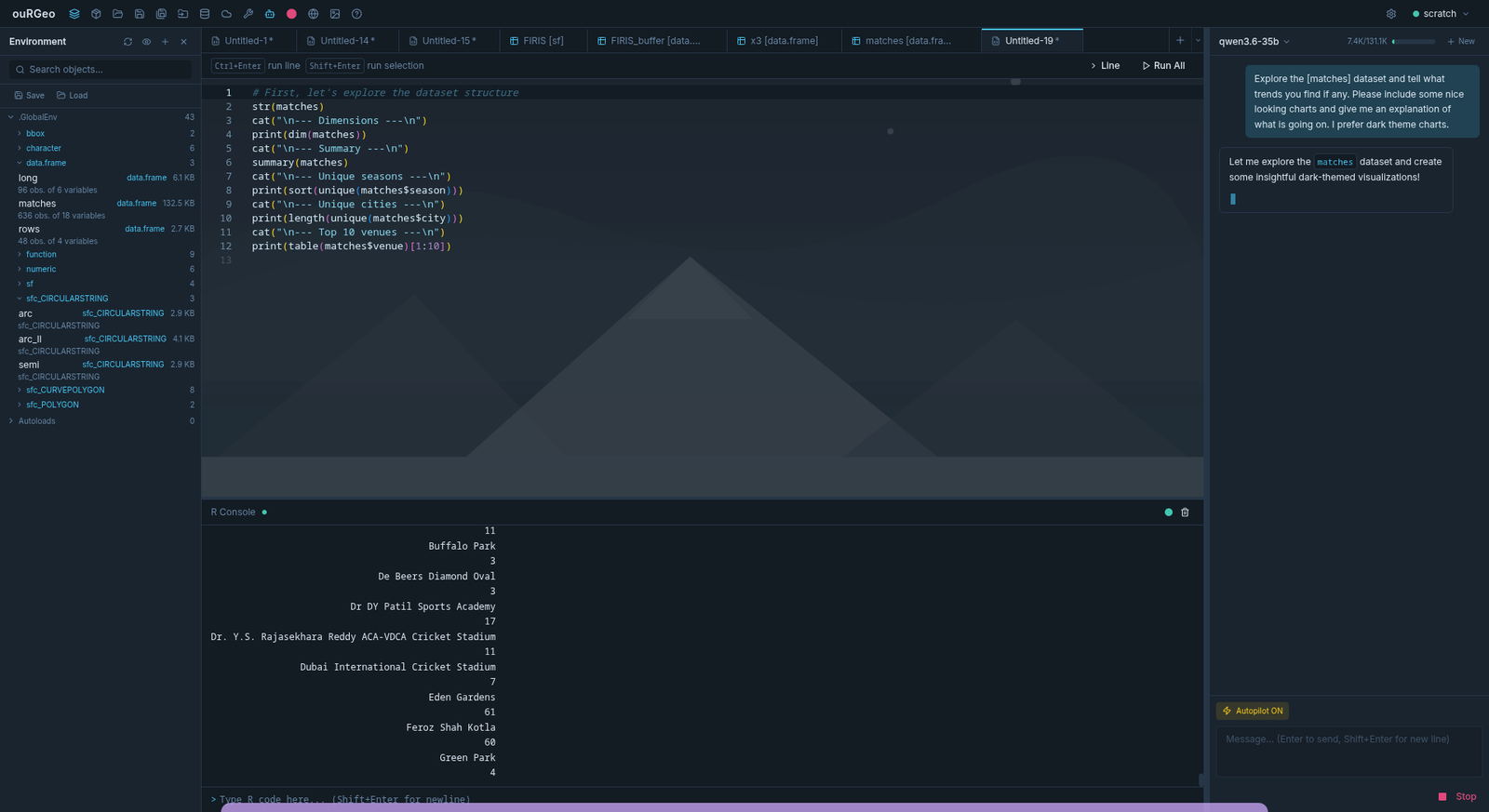

04 The In-App AI Agent + Autopilot

An assistant that understands your session — and can drive it, if you let it. Cloud or fully local.

Open the AI panel and ask, in plain language, for the analysis you want. The agent knows about your R environment and can write the code to get you there. Turn on Autopilot and it goes further — executing R directly in your live session and iterating toward the result.

Your model, your rules

ouRGeo isn't locked to one vendor. Use a cloud provider, or point it at a model running on your own machine for a 100% offline, private assistant — nothing leaves your computer.

• Autopilot mode — the model creates, modifies and runs R objects for you; a clear warning explains the trade-offs before you enable it.
• Streaming answers — responses arrive live, with the code it runs shown inline so you can review every step.
• You stay in control — Autopilot is opt-in, and the generated code lands in your console like any other action: inspectable, editable, savable.

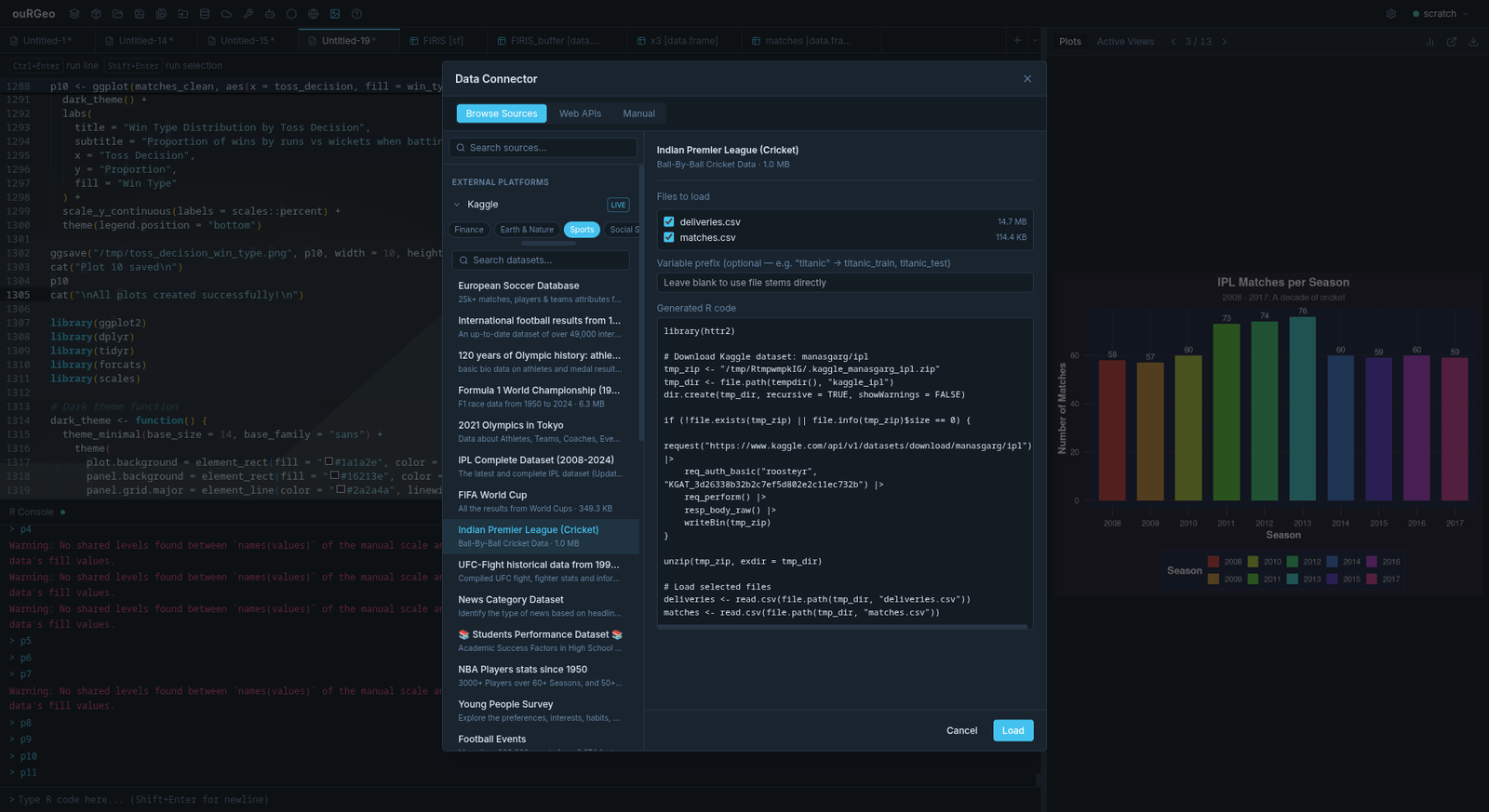

05 The Data Connector

Reach into the world's public data catalogs without leaving the app — and get reproducible import code.

The Data Connector browses live web APIs and open-data portals, lets you build a query visually, previews the result, and then generates the R to import it. Only metadata and previews run in the UI — the actual import is R code echoed to your console, so your data pull is always reproducible.

Built-in providers

• Vector, raster & tabular — pull features as sf, imagery/elevation as SpatRaster, or plain data frames.
• Visual query builder — cascade to the resource you want, add filters, preview, then load.
• Add straight to the map — raster imports can register with the tile engine and zoom to extent automatically.
• User-extensible — add your own servers per provider; they're remembered between sessions.

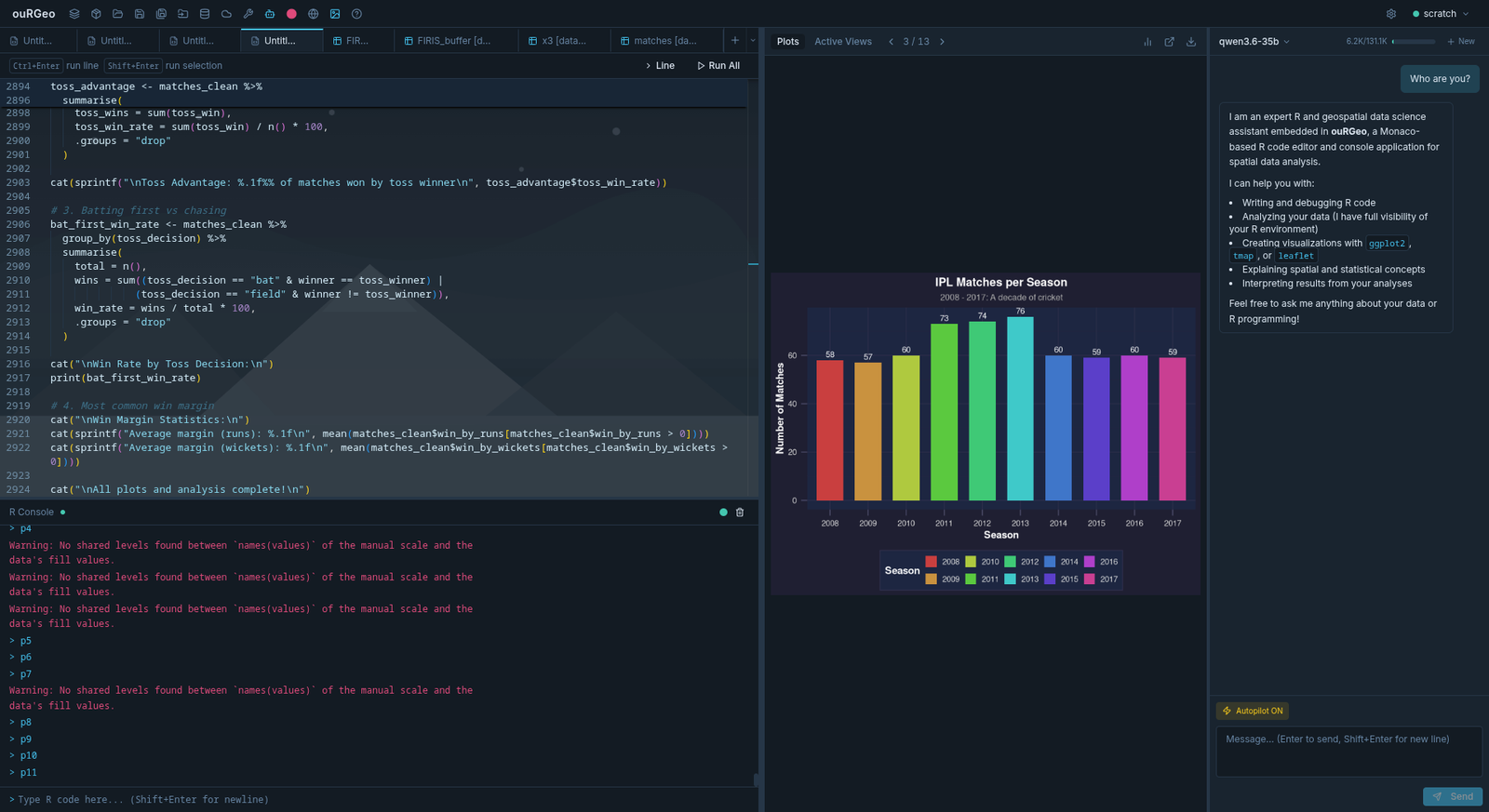

06 Code History & Session Recording

The defining idea of ouRGeo: every action has a matching R response you can keep.

This is what makes ouRGeo fundamentally different from a normal GIS. When you buffer a layer, run a join, compute a distance, or draw a feature through the GUI, the corresponding R code appears and runs in the console — the real command, not a summary. Your point-and-click session is, transparently, an R script being written for you.

Recording mode

Turn on recording and every GUI-generated command is appended to a file of your choice — the currently open tab, a new blank script, or an existing .R file on disk. Click your way through an analysis, and walk away with a clean, runnable script that reproduces it exactly.

• Run it your way — type in the console, Ctrl+Enter a single line, or Shift+Enter a selection from the Monaco editor.
• Portable projects — save everything as a self-contained .ourgeoproj bundle (code, environment, layers, databases) and reopen it anywhere.
• Crash-resilient — debounced autosave preserves your tabs and workspace across sleep, reloads and crashes.

07 And a Whole Lot More
